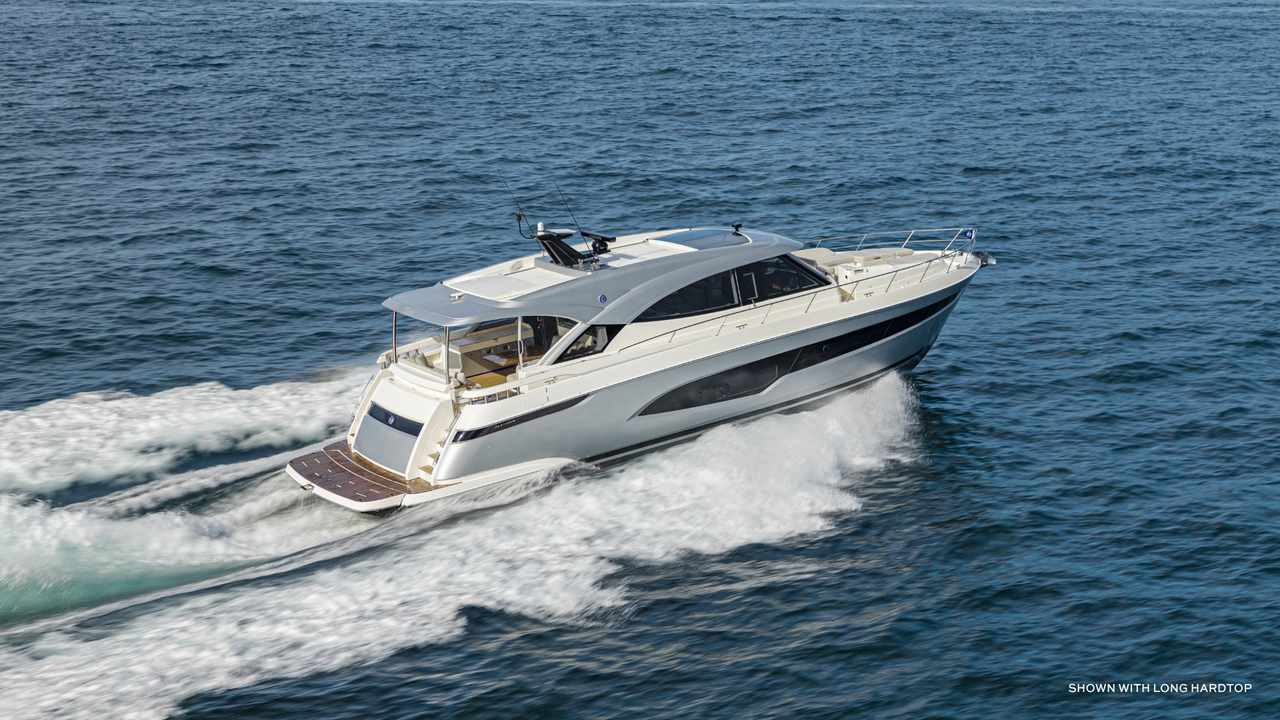

The Riviera 6200 Sport Yacht Platinum Edition is an express cruiser of 20.86 meters that requires much more precise configuration choices than a simple selection of furnishings. Two levels of Volvo Penta IPS propulsion, 4,000 liters of fuel, CZone automation, lithium batteries, tender garage and three or four cabin layout build different systems for weight, autonomy, electrical loads and maintenance.
This guide is not a test at sea and does not attribute undocumented speed or consumption. Instead, it organizes the declared data and checks to be entered in the specifications, testing and delivery. The goal is to set up a 6200 coherent with crews, routes, stay in rada and ports really attended, leaving a technical baseline useful for the following seasons.
Data to be frozen in the contract
| Voice | Summary | Decision or control |
|---|---|---|
| Length / hull | 20,86 / 18,48 m | Real encumbrance and measurement standards |
| Baglio / fishing | 5.35 / 1,65 m | Boat, seabed and travel lift |
| Dry weight | 32.600 kg | Different weights of the specimen |
| Basic Propulsion | 2 × D13 IPS1200, 900 hp | Mission, loading and testing curve |
| Alternative Propulsion | 2 × D13 IPS1350, 1,000 hp | Cost, performance and maintenance |
| Fuel / water | 4.000 / 800 l | Usable quantity and reserve |
| Black water | 500 l | Autonomy, levels and exhaust |
The mission comes before optional
The capitulate must start from a measurable profile: regular and maximum people, consecutive nights in rada, distance between supplies, tender and water toy, annual miles, professional crew and climate season. These numbers determine if you prefer the fourth cabin, a local utility, a crew accommodation, more water production or a greater electric reserve.
Each option must be recorded with mass, position, power absorbed, heat produced and access for maintenance. The trade list thus becomes a budget. If a choice does not solve an operating requirement, it nevertheless adds weight and complexity: it must therefore be motivated and not only available.
Areas, fishing and operating weight
The total of 20.86 meters does not coincide with the 18.48 meters of hull. Platform, bow and accessories influence mooring and handling, while the glare of 5.35 meters is to be compared with bitten, parabords and geometry of the boat seat. The declared height of 5.78 meters requires a separate verification for antennas and installed appliances.
The 32,600 kg are a dry weight. Fuel, water, people, dinghy, galley and equipment bring the operating displacement much higher. Delivery must include distinct weights and exact testing conditions, with dives and trim detected. Electronic corrections should not hide a distribution of unbalanced loads.
IPS1200 or IPS1350
The standard configuration combines two Volvo Penta D13 from 900 hp to IPS1200 pods; the alternative goes up to two D13 from 1,000 hp with IPS1350. The decision cannot depend on the maximum value alone. They must be compared final mass, planned cruise regime, typical cargo, frequent sea, service network and management cost along the entire period of possession.
The test must build two curves for the specimen delivered, do not repeat data of another boat: turns, speed, indicated consumption, motor load, trim, temperatures, noise and environmental conditions. The points stabilize and, when possible, repeat on reciprocal routes. The reserve is calculated on the consumption observed, not on a generic promise.
Pod, propellers and chain
Engine, reducer, pod, counter-rotating propellers, cooling, unloading, steering and software form a single chain. Freshmen, reports, type of propeller and electronic versions must coincide with the technical file. The two sides are compared to stabilized systems: persistent load, pressure or temperature differences require a documented explanation.
After navigation we control oils, seals, drawings, supports and residual temperatures. The maintenance plan must include pod, galvanic protection, intervals, consumables and spare parts availability in the usual ports. Also the path to remove important components should be observed before accepting the boat.
Joystick and degraded procedures
The joystick coordinates marches, acceleration and pod orientation. They measure response, symmetry, stop and rotation, including wind and current. Each manoeuvre station must transfer the command clearly, without delays or ambiguous states. Cameras, real visibility, communications and management of peaks complete the test.
The configuration is credible only if it contemplates faults. The commander must know the procedure with an indisputable pod, a degraded sensor, an excluded location or a data loss. Emergency instructions remain on board and are tested under controlled conditions with the crew using the yacht.
Four thousand liters and real autonomy
The nominal capacity is not entirely usable. Bottom, safety reserve, generator and trim conditions reduce fuel available for route. Tanks, valves, returns, vents, prefilters and drainage points must appear in a scheme delivered and consistent with what is seen in the machine room.
Indicators are calibrated at multiple levels, recording the liters. The autonomy is calculated with a consumption curve obtained on the 6200 loaded as it will be used and with an agreed reserve. Planning must show generator consumption and margin for deviations, sea and unavailability of a distributor.

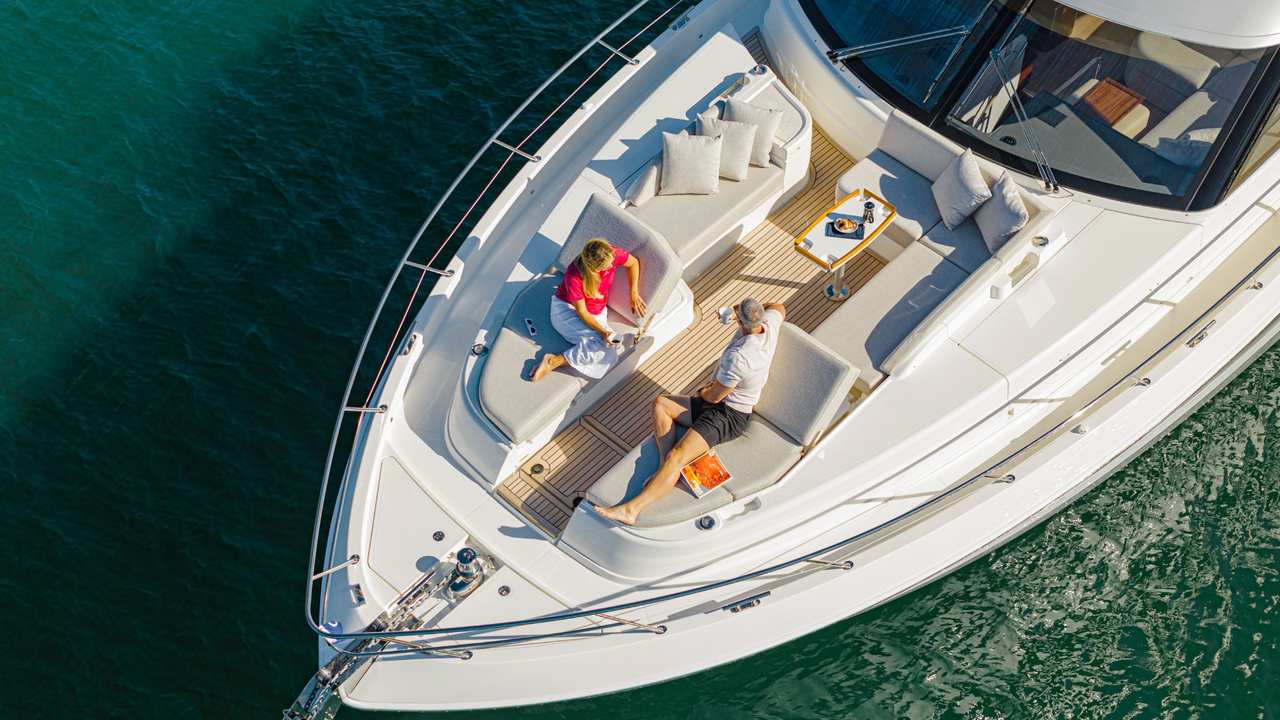

Prua: a lounge for safety
The prodiera area is a social environment, but during navigation it returns to be an exposed part of the blanket. The capitulate must distinguish shave and transfer configuration: tables, cushions, covers and mobile objects have storages and considered identified. Tientibene, passers-by, battalions and anti-slip surfaces try with wet bridge.
Drainage, doors and closures are subjected to water; the view from the dash is controlled with people and tents in the positions actually used. Access to mooring equipment should not be impeded by the furnishings. Lighting and controls must also be read at night without dazzling the bridge.

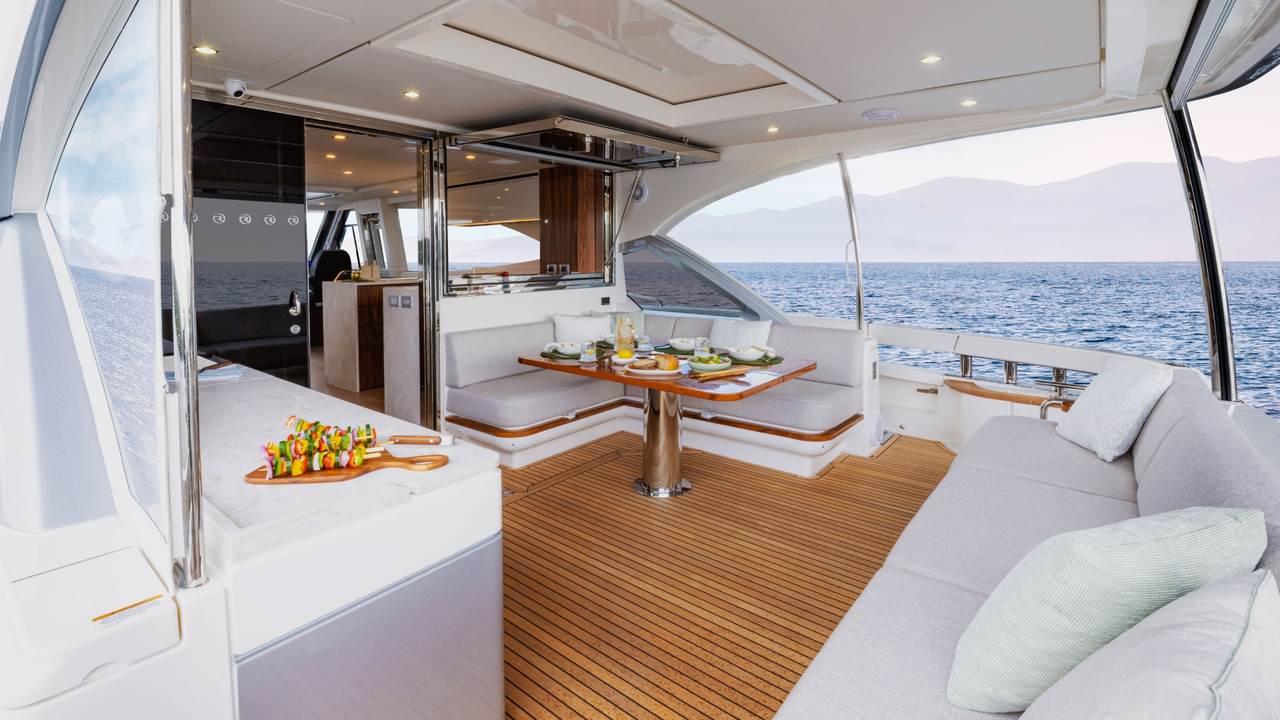

Stern bridge from 12,9 square meters
The stern bridge puts together lunch, outdoor kitchen, passage, mooring and access to the sea. The layout must avoid the need for the table to go through the space of those who manage the tops and parabords. Table, chairs, fixtures and counters require nautical stops; drains and canals must be tested with abundant water.

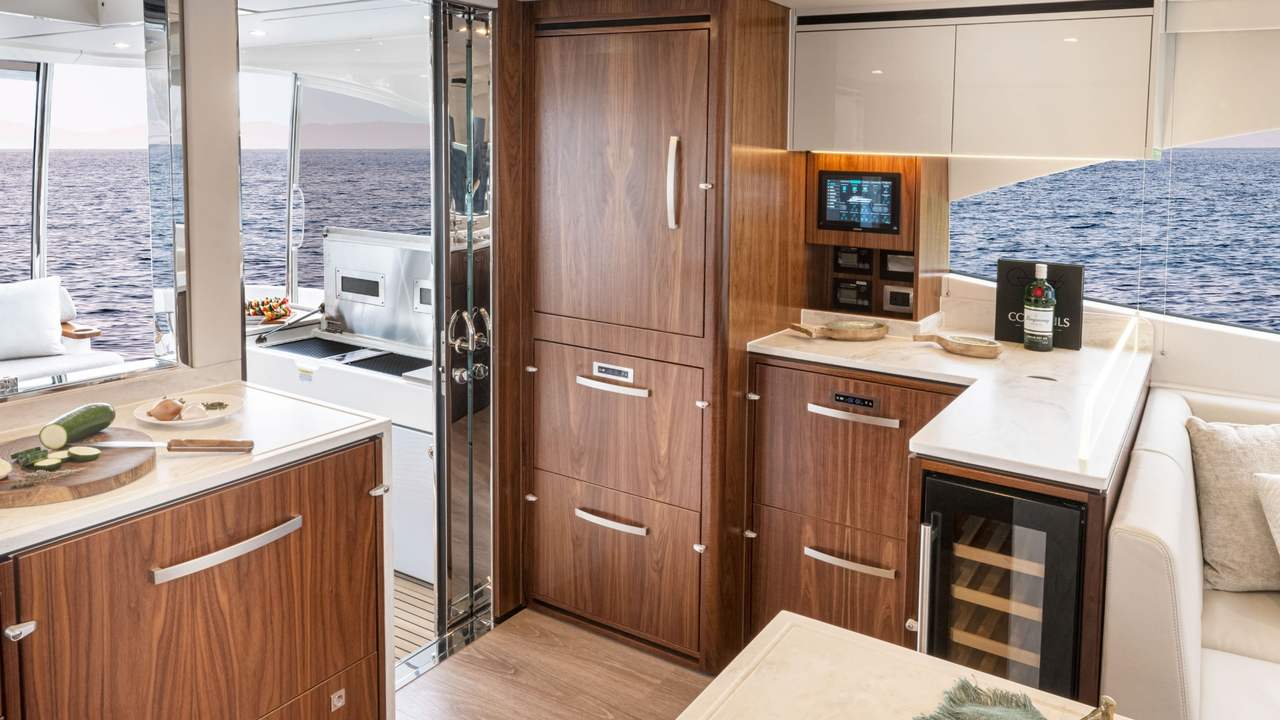

Wet bar, refrigeration, grill and sink add electrical circuits, gases or resistances, water and waste to an exposed area. They test at the same time and with the living room in use, recording absorptions and protections. Equipment must be isolated without switching off unrelated services.

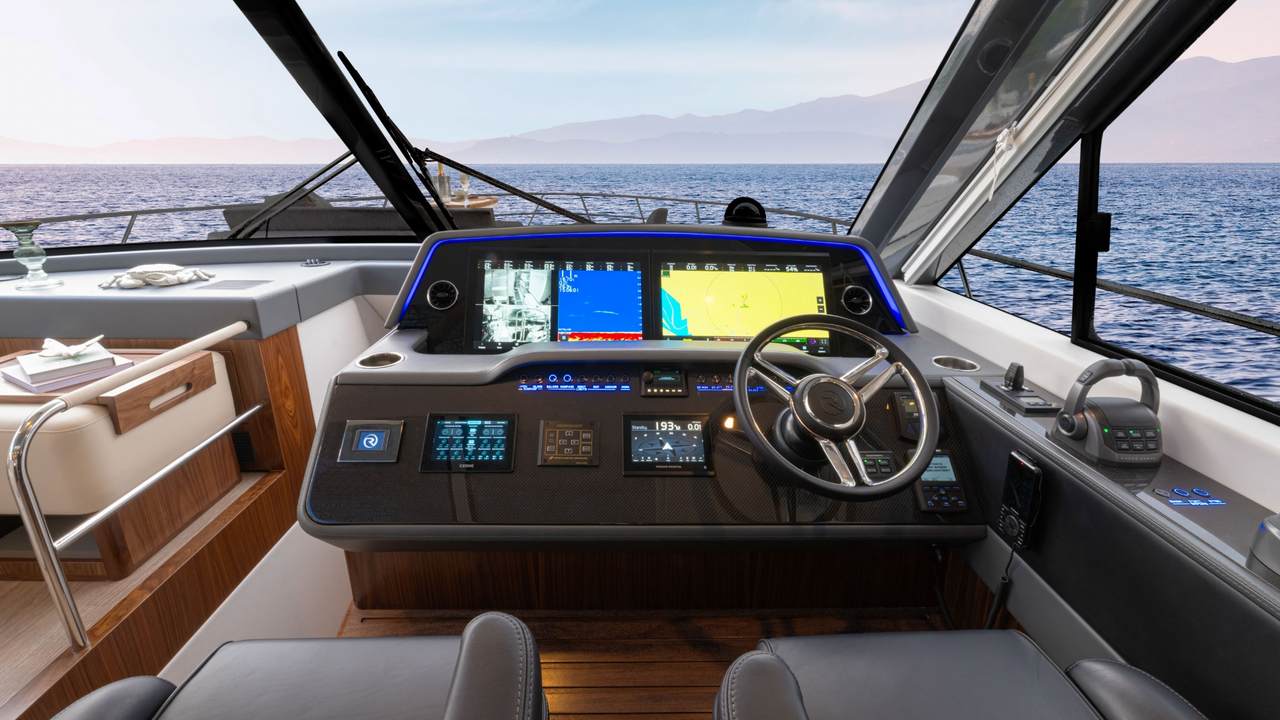

Bridge, Glass Cockpit and CZone
The bridge integrates navigation, propulsion and automation. CZone can simplify the control of lights, pumps, climate and energy sources, but an ordered interface does not show that the systems are independent. It needs a map with power, switch, gateway, sensors and shared devices.
During testing, a display, data source and a power supply branch are safely lost to verify what remains available. Radar, AIS, GNSS, autopilot, VHF, cameras and IPS alarms must have priority and consistent pages. Delivery includes saved configurations, versions list and recovery procedure.
Sentinel, connectivity and remote control boundaries
Sentinel remote monitoring can provide status, alarms and useful information when the boat is unattended. Before delivery, data transmitted, coverage, subscriptions, account owner and authorised persons are defined. Each alarm must have threshold, recipient, escalation and planned action.
Connectivity does not replace local sensors, on-board procedures or physical visits. Network loss must not compromise essential functions. Passwords, associated devices and site access are revised to the transfer of ownership; software updates follow a register with backup and return to the previous configuration.

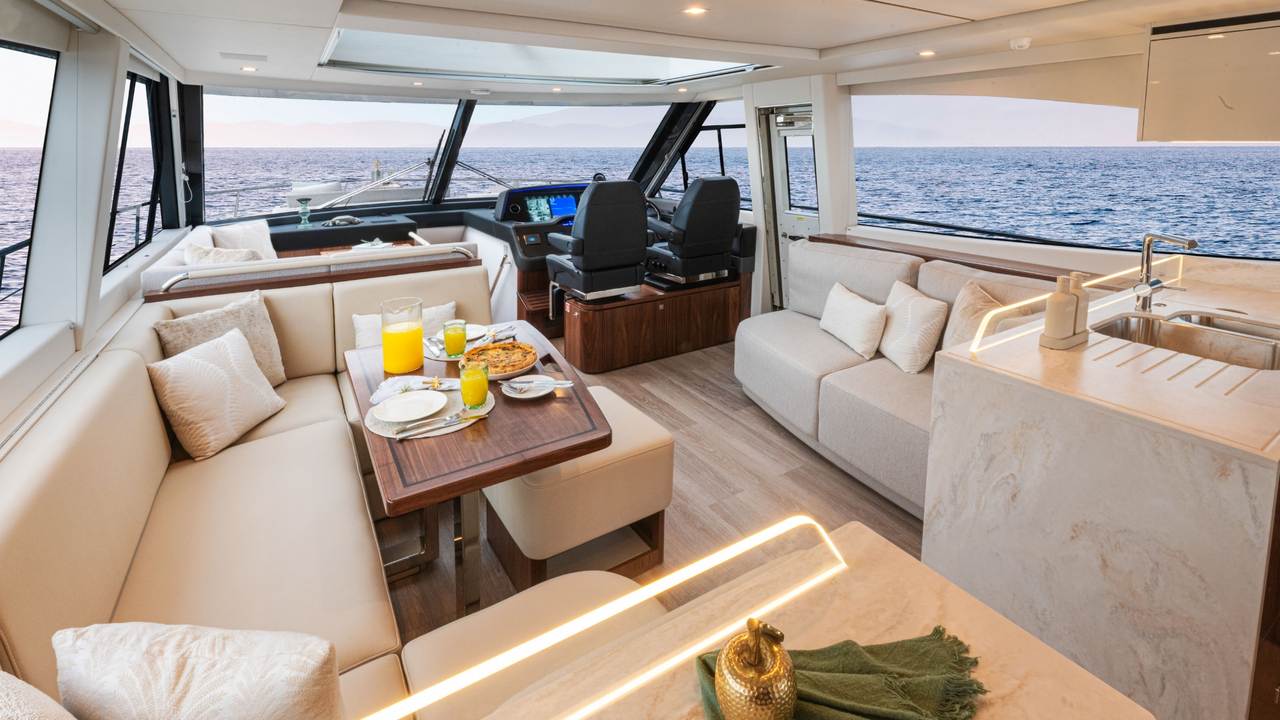

Salon, kitchen and thermal budget
The main bridge connects kitchen, living room, bridge and stern. Vetrates and openings expand light and continuity, but increase solar load. The air conditioner proves in the most difficult conditions reasonably reproducible, with people, kitchen, electronics and doors in the intended mode of use. Temperature, humidity, absorption and noise are recorded.
Chillers, cellar, plates, suction and sinks operate together. Voltage falls, start-ups, drains, condensation and ventilation of technical furniture are observed. Doors, drawers and fixtures must remain closed in acceleration and roll, without preventing escape routes or access to the paintings.
Three or four cabins: two different boats
The 6200 can be set with three or four cabins and accommodate eight or nine people according to the layout. The fourth cabin increases receptive capacity, but absorbs volume that can be intended for utilities, storage or crew. The choice also changes ventilation, linen, water demand and use of bathrooms.
The contractual design must contain exactly beds, doors, closets, bathrooms, escape routes and technical panels. Each bed is checked with mattresses, obscuring, lighting, sockets and ventilation. Compliance is not assessed on the generic plan of the range, but on the specimen delivered.

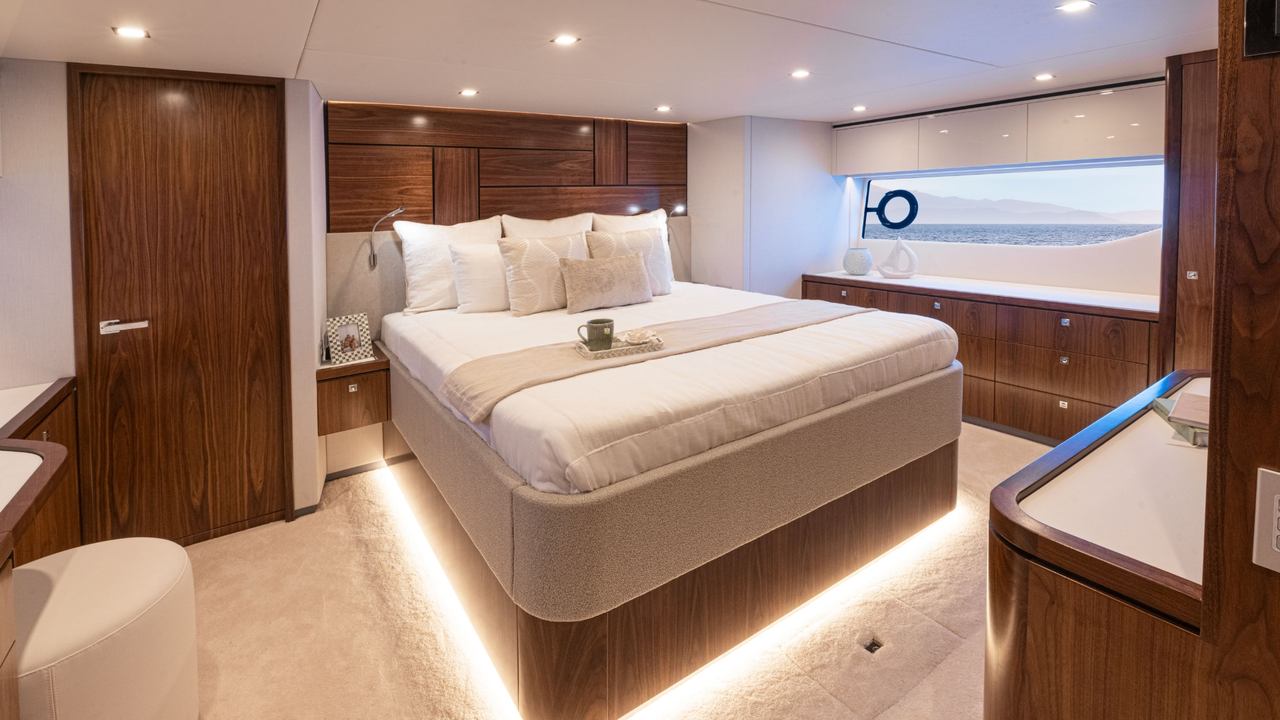

Armoury Suite and Acoustic Baseline
The full-bearing tank occupies the central area, close to propulsion and plants. Noise and vibration must be measured with engines, generator, air conditioning and pumps in repeatable combinations. Delivery values become a baseline: a future change will be easier to diagnose an unregistered feeling.
Darkening, replacement of air, condensation, draining and sealing of the openings. Access behind panels and furnishings must remain viable without destructive disassembly. Full boots cannot block valves, pumps or escape routes.

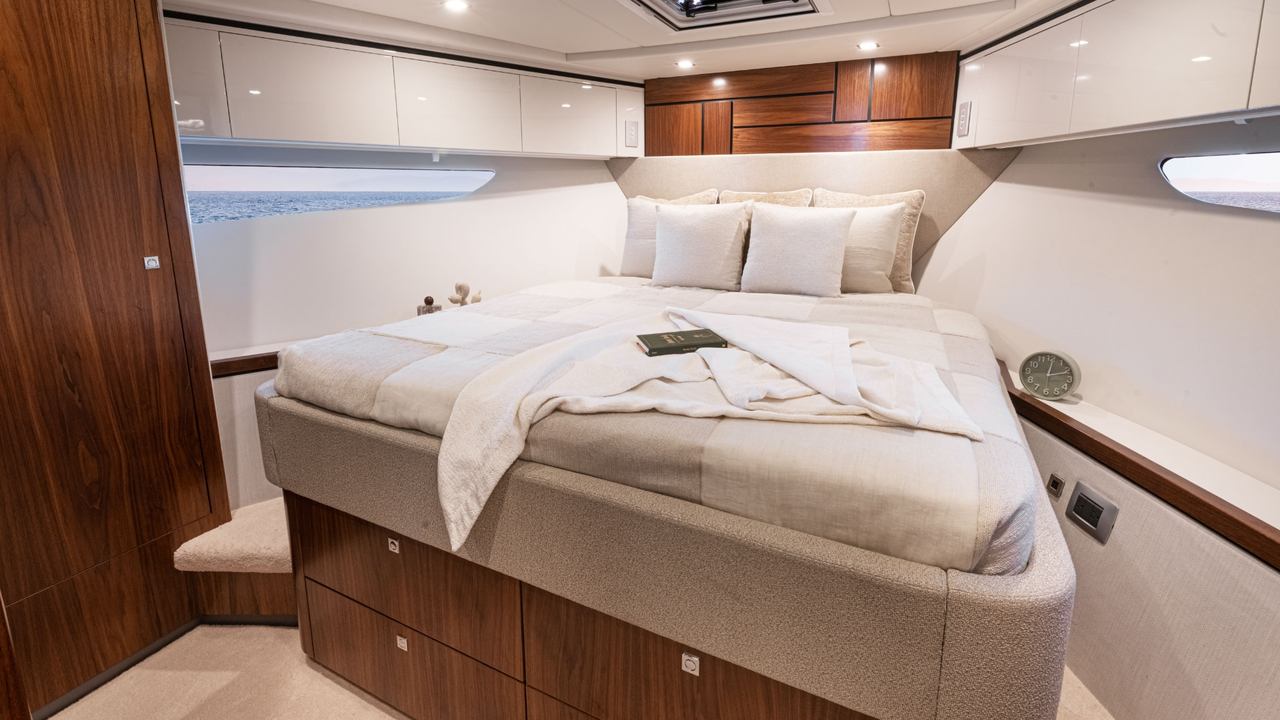

VIP cabin, guests and service management
The prodier VIP cabin must preserve ventilation and possibility of movement when the beds are in use. Oblò, passman, doors and furnishings are controlled by sealing, closing and security. Baggage and linen are checked in real terms, avoiding turning technical premises into deposits.
With all guests on board we try the pressure of water on multiple utilities, simultaneous discharge, hot water production and cabin climate. Odours and wastes report problems of venting or siphoning to be corrected before delivery.

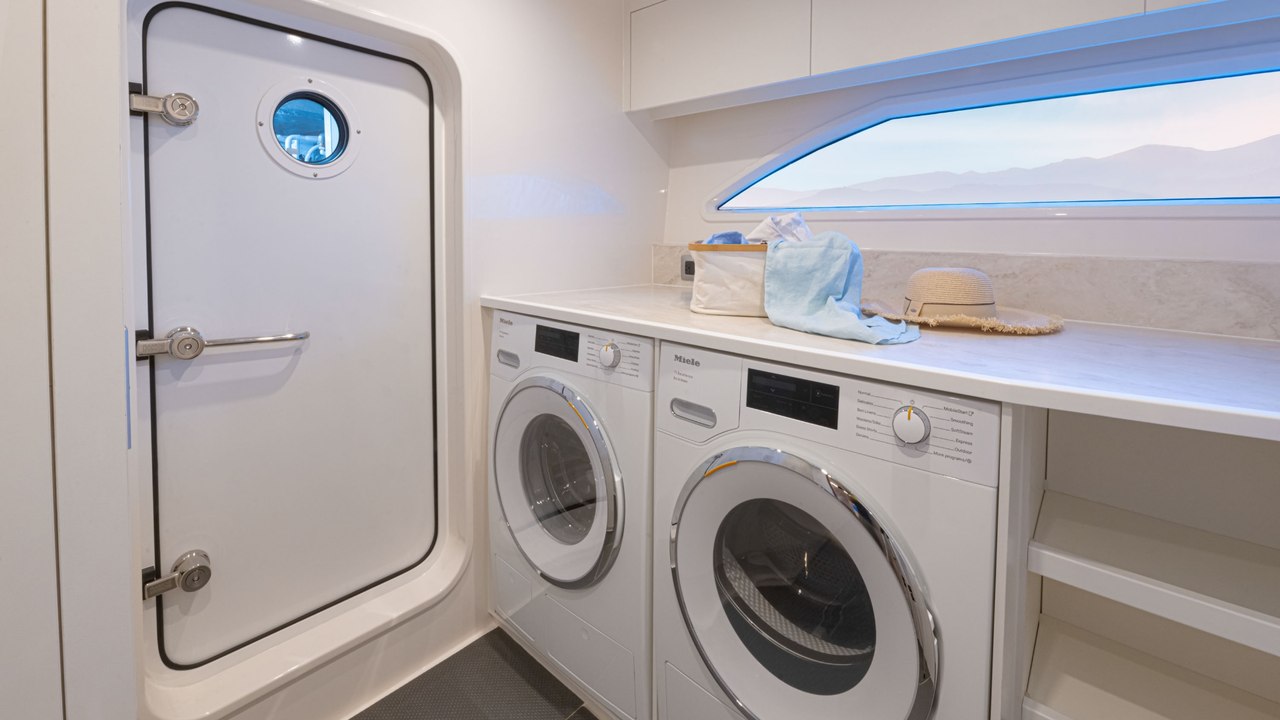

Utility room or cabin crew
The poppiero volume can meet different needs. A utility room improves laundry, pantry, spare parts and cruise management; a crew cabin separates roles and rest during more intensive uses. The two solutions are not equivalent and must be chosen on the mission, not on the alleged resendiability.
Any version requires ventilation, lighting, deemed and technical access. Washers and dryers add water, discharge, heat and power spikes. If the club hosts a person, escape routes, privacy, climate and services must be verified as in any other cabin.
Lithium, alternators and energy balance
Lithium batteries can increase usable energy and reduce generator time, but require a complete project: chemistry, capacity, BMS, contactors, fuses, ventilation, sensors, chargers and integration with alternators and CZone. The file must contain load and discharge limits and behavior in case of alarm.
The budget lists every user in navigation, openness, night and emergency. Peak, average consumption and autonomy are measured up to the agreed threshold. The test includes loss of a magazine, insulation of a counter and controlled restart. The generator remains sized for realistic simultaneous loads, not for the only nominal sum.
Solar skin: useful energy, not free
The integrated photovoltaic surface available as an option can contribute to service loads and reduce generator hours. The yield depends on orientation, shadows, temperature, regulators and battery status. Installed power, circuits, protections and production expected in the seasons of use must be reported in the specifications.
The test records production to free sky and behavior with partial shadows. Access to connections and regulators occurs, as well as compatibility with cleaning and maintenance of the hardtop. The system should not be presented as a universal replacement of the generator without a measured energy balance.
Stabilization Humphree and trim
The Humphree fins available as an option add comfort, but also appendices, actuators, electronics and maintenance. The choice must indicate conditions of use, expectation, absorption and alge constraints. Testing compares active and disactive behavior according to safe and repeatable procedures.
Stabilization, fixation correctors and pods are not confused. Each system has a function and control logic. Versions, calibrations, limits and manual modes are recorded; a failure must not produce conflicting commands or leave the crew without operational indications.
Fresh water, holding tank and days in satin
The 800 litres of water and 500 litres of black water become autonomy only after defining people and consumption. Indicators, vents, valves and emptying points are identified and calibrated. A possible dissalator enters the budget with effective flow, water quality, prefilters, absorption and conservation procedures.
Pumps, boilers, showers, kitchen and washing are tested simultaneously. The system must maintain pressure without abnormal cycles and discharge without odours or returns. The shaving procedure establishes thresholds to start water production or plan emptying.
Platform, garage and tender
Tender, platform and garage must be configured as a unique system. Weight, size, center of gravity, cradle, winch and holding points must coincide. The launch and recovery are tested with people in the planned positions, controlling interference, visibility, drainage and emergency stops.
SUP, seabob and accessories require dedicated storage. Water toy chargers and accumulators need protection and ventilation. The garage cannot be filled to the point to prevent access to pumps, locks or actuators; the navigation configuration must be photographed and attached to the onboard manual.

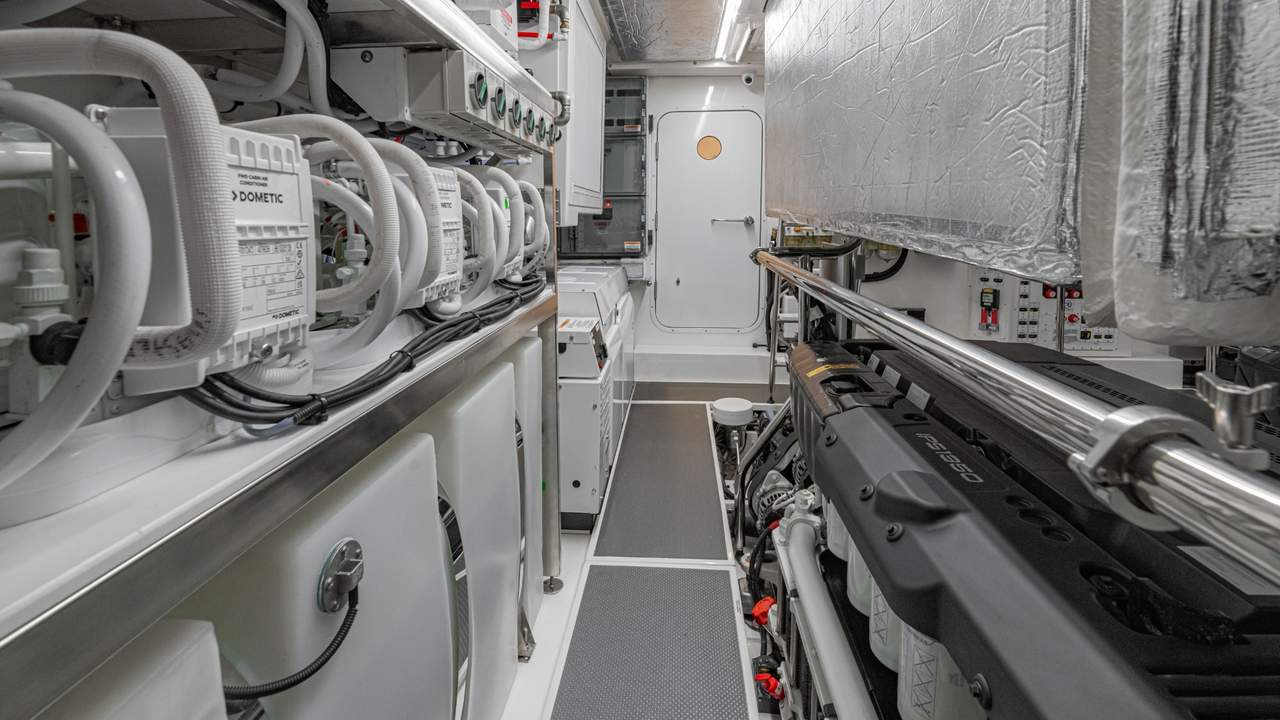

Machine room and maintenance
The visual order is not enough. Filters, impellers, belts, sea valves, batteries, discharges, pumps and separators verify space for hands, tools and removal. Labels and patterns must use the same names. Components requiring frequent intervention cannot depend on the disassembly of permanent furnishings.
All the machines in operation control ventilation, temperature, lighting and alarms. Clean hair facilitate the diagnosis of piping. Initial parts, special tools, clamping pairs and intervals enter the delivery package together with the assistance contacts.
testing and acceptance sequence
The test is divided into port, navigation and final verification. In port we try utilities, protections, levels, data network, closures, drainage and degraded procedures. At sea there are trim, propulsive curves, temperatures, noise, vibrations, maneuver and stabiliser response. After the return, losses, loosenings and anomalies are sought.
Each relief has responsibility, expiry, evidence and closure criterion. Photos, software configurations, fluid analysis when planned and alarm logs remain in the file. Acceptance occurs only after the repetition of the tests concerned, not on the promise of future correction.
Consistent configuration of 6200
The Riviera 6200 Sport Yacht offers two propulsions, numerous integrated systems and flexible layouts. The best version is not the one with more options, but the one in which power, beds, energy autonomy, tender, stabilization and services respond to the same profile of use. This consistency reduces unnecessary weight, hidden dependencies and operating costs.
Contract, distinct weights, schemes, instrumental testing and baseline transform a complex configuration into a manageable boat. This is the level of detail that allows an experienced shipowner to evaluate the 6200: not a list of equipment, but a verifiable system before delivery and controllable throughout operational life.
