Configuring a Beneteau Gran Turismo 35 means coordinating propulsion, energy, transformable blanket and overnight, avoiding that every option is chosen in isolation. The model measures 11.20 meters outside everything, adopts two Mercury outboard and has 740 liters of fuel, 160 liters of water and two double beds. The platform includes standard hardtops and side terraces that bring the maximum width declared from 3,24 to 4,65 meters when they are open. This guide does not simulate a test: it builds a sequence of order checks, delivery and management based on model data and direct verification of the individual unit.
Define the program before optional
The first step is to write how the boat will be used: daily exits, weekends, usual number of guests, mooring and services available in port. From these answers they derive energy capacity, kitchen, textiles, electronics and seating configuration. A consistent set-up solves concrete needs and does not accumulate devices that increase weight and maintenance.
The final distinction must separate standard equipment, packages and accessories of the dealer. Each item requires brand, model, position and warranty. Commercial images can show different versions and do not replace the signed exemplar document.
Configure the two outboards
The base version is associated with two 300-horse Mercury Verado, while the maximum declared power is two by 350. The choice changes poppiera mass, cost, propellers and consumption. Before ordering, typical load, desired autonomy and service network are defined, asking for each proposed performance to be connected to the actual combination.
On delivery, serial numbers, propellers, software and maintenance intervals are recorded. Cables, pipes and connections must move freely during full steering. Engines must be raised and lowered by checking interference with platform and mobile components.
Fuel: two tanks of 370 liters
The declared total capacity is 740 litres, divided into two tanks. The verification sequence identifies vents, vents, valves, filters and feeding modes of the two engines. Indicators are compared with known quantities, because the percentage reading should not be interpreted as an absolute measure without calibration.
To plan autonomy, consumption is used with load, sea and annotated regime, maintaining a prudent reserve. It is not correct to obtain a universal flow from only one promotional value. Any fuel smell requires immediate control and ventilation.
Fresh water and boiler
The water tank contains 160 liters and the boiler 25. Pump, filter, accumulator and valves must be reached without extensive disassembly. At delivery, all taps, showers and drains are tested, ensuring that the pump maintains pressure without abnormal cycles.
The boiler requires electrical protection and a procedure that prevents dry operation. Before a period of inactivity shall apply emptying and sanitization provided for in the documents. Minimum losses can damage furniture and create moisture in the lower volumes.
Side terraces: operating procedure
The terraces extend the maximum bay to 4,65 meters in stop. The system must have protected controls, location signaling and recognizable blocks. It is tried several times by observing hinges, actuators, seals and drains, without people or objects in the movement zone.
Before leaving the mooring both parties must be closed according to the procedure. The crew must be educated on the crushing points and behaviour in case of non-food. In the port you control distance from the dock and side space available.

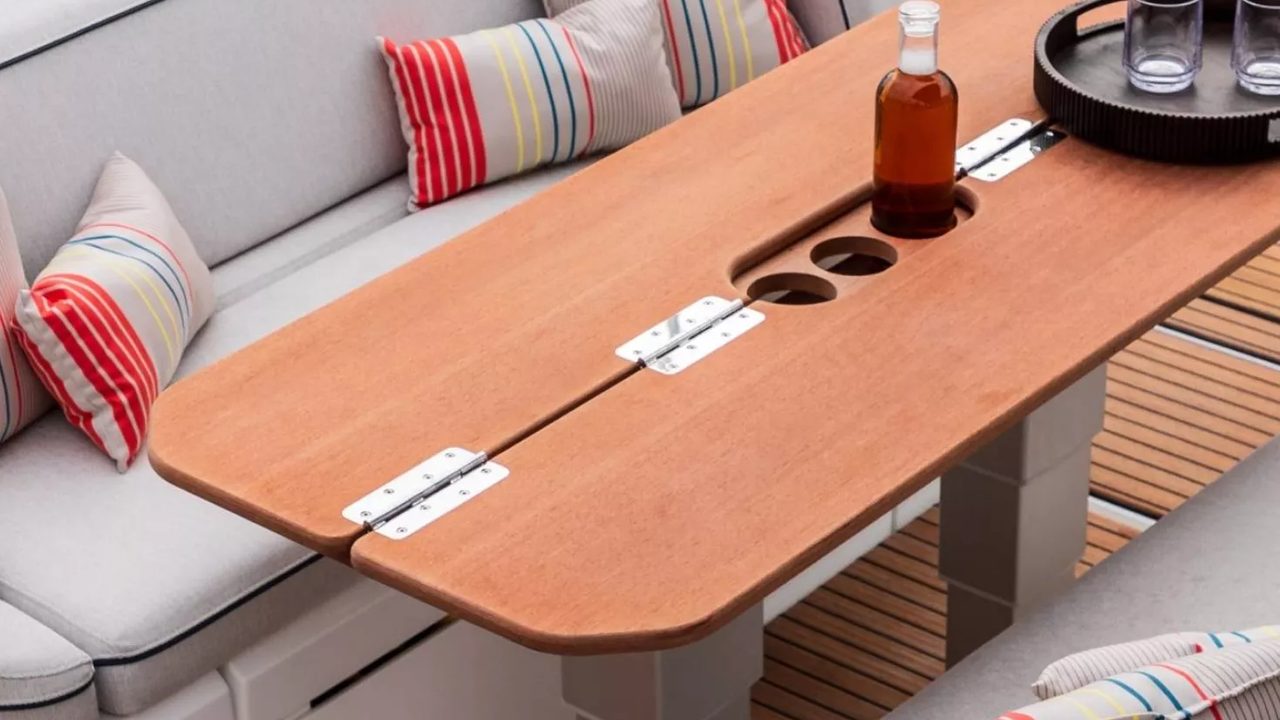

Poppiera table and dinette
The external dinette changes function through table and mobile seats. Each position must have an effective stop and a simple sequence. The delivery opens and closes the system with mounted cushions, checking that doors, gavones and passage to the sea remain accessible.
Removable components need storage. Leaving them free in navigation turns comfort into risk. Hardware and supports must be rinsed and inspected, while textiles must dry before being closed in the rooms.
Sleeps and internal transformations
The model offers two double beds. Part of the space may require transformation, so the test must include assembly, access and storage of day components. Useful measures, ventilation, obscuring and presence of sockets suitable for the intended users.
Mattresses and cushions must remain dry and do not obstruct technical panels. Reading lighting should be tested individually. For a real weekend it also serves a seat for bags and kit that does not occupy the exit routes.
Local toilets and waste management
The local toilet is completely separate and includes shower. The check sequence checks ventilation, pump, drains, connection seal and furniture closure. After a prolonged trial, infiltration is sought in adjacent rooms and stagnations on the floor.
The black water circuit must be identified on the single unit, including valves and emptying modes allowed. Paper, detergents and procedures must be compatible with the system. A clear documentation avoids incorrect maneuvers and facilitates maintenance.
Hardtop, shadow and electric loads
The hardtop is standard and can accommodate devices, lighting and solar panels. Each added element must use adequate supports and pond passes. High height and weight change with radar, antennas and accessories, so the full size is to be recorded for bridges and remittances.
The available shade depends on the orientation and any closures. Phones and panels must have a seat that does not block outputs or visuals. Water discharges, fixings and possible vibrations to different systems occur.
Food and food preservation
The kitchen must be evaluated as a set of water, energy, ventilation and storage. It tests the refrigerator to engines off, measuring absorption and ability to maintain temperature. Doors and drawers must remain closed with the movement of the boat.
The work plan should be used without intruding the passage. Each device provided in the order must be supported by the correct circuit. The energy budget considers hours in openness and external temperature, not only nominal power.
Aesthetic and material version
Finishes and aesthetic packages can change hull color, details, textiles and accessories. The choice must be recorded with samples and codes, avoiding confusing elements shown in photography with the standard. Dark surfaces and exposed materials require temperature and maintenance evaluation.
When delivered, uniformity, joints and protections are checked. A documented defect with photographs and precise location is easier to manage. The perceived quality must be accompanied by the possibility of replacing the individual component over the years.
Plane and electronics
The dashboard combines navigation, engine data, communications and services. The configuration must define display, transducer, cartography, radio and integration with engines. Each device requires protection, updating and corresponding manual.
Before departure, alarms, lights, wiper and communications are felt. The commander prepares simple pages with essential information and maintains an alternative procedure in case of main screen failure. Connectivity does not replace checks on board.
Seanapps and boat connected
The manufacturer proposes Seanapps to consult battery, level, maintenance and navigation data. The presence of the unit, the active functions and any services must be confirmed in the separate. Accounts and digital properties must be transferred correctly to the owner.
Remote data is a help and do not certify the absence of problems on their own. Levels and alarms must be compared with instruments on board. Upon delivery, update, privacy and behavior are noted when the connection is not available.
Batteries and energy balance
The correct capacity depends on refrigerator, lights, electronics, pumps and stay at off engines. A list of loads is prepared with power and expected hours, so compare the energy used with recharge from alternators, dock and solar eventual. Starting and services must be identified and separated.
Batteries require fixing, ventilation and protection. The monitor should be calibrated and tested with a realistic cycle. Any future addition must be verified with respect to existing cables, chargers and devices.
Technical Table of Gran Turismo 35
| Voice | Summary | Control |
|---|---|---|
| Length outside everything | 11,20 m | Complete measurement of the unit |
| Rope of hull | 3,24 m | Boat parking |
| Baglio with terraces | 4,65 m | Side space |
| Fishing | 1,09 m | Charged configuration |
| Light dislocation | 5.336 kg | Operating weight |
| Fuel | 2 × 370 L | Valves and indicators |
| Fresh water | 160 L | Pump and drains |
| Boiler | 25 L | Protection and testing |
| Basic motors | 2 × 300 hp | Series and propeller numbers |
| Maximum power | 2 × 350 hp | Ordered configuration |
| Sleeps | 2 double | Transformations and ventilation |
| Category CE | B8 / C10 | Plate of the specimen |
The data refers to the model. Optional, motors, liquids and accessories change weight and dimensions; manuals and single boat tag always prevail.
CE category and load distribution
The declared classification is B for eight people and C for ten. The limit shown on the tag is the total weight of people, luggage, liquids and accessories. The maximum number does not automatically describe comfort or ideal configuration.
In navigation the terraces must be in the prescribed position and the steps remain free. The commander distributes the group and ensures tables and cushions. Variations of trim or visibility require careful reduction of speed.
dry delivery controls
They compare hull, identification number, engines and accessories with documents. There are terraces, doors, doors, tables and chairs. In the rooms you are looking for labels, fixings, stagnations and accessible connections; each circuit is associated with a command and protection.
The tools are switched on individually, transferred accounts and registered guarantees. Defects and residual works enter a report with responsibility and expiry. The signature follows the verification, it does not replace it.
sequence of checks in water
With load and annotated levels, starters, steering, trims and commands are tested at different systems. Temperature, vibration, noise and drainage are observed. The maneuvers include gear forward, back and use of the joystick if installed, always in a safe space.
The arrangement also occurs with people distributed between bow and stern. Speed and consumption are recorded as results of the specimen in the conditions of the day, without generalizing them. Reentry is inspected again and connections.
Checks before each exit
The routine includes weather, fuel, water, batteries, equipment, peaks and freedom of passages. Engines, propellers and pipes are observed, so the closing of the terraces occurs. Navigation, communications and lights must be available before leaving the mooring.
The crew receives instructions on jackets, fire extinguishers, engine stop and toilet use. A short and repeatable list reduces omissions. Each anomaly is resolved or evaluated before departure.
Configuration Rating
Gran Turismo 35 offers a versatile base for daily and weekend exits, but transformability requires discipline. Engines, terraces, energy and interiors must be chosen together, maintaining access to systems and easy management for the crew.
The best configuration is not the one with multiple options: it is documented, balanced and verified in the real program. A methodical delivery creates reference for future maintenance and consumption and makes the owner aware of the limits of the specimen.
