The Sunseeker 90 Ocean must be configured as a complete system, not as a simple sum of environments. The length is 27,10 meters, the beam of 7,16 meters and the displacement declared by means of 82,300 kilograms define a vessel in which propulsion, electricity production, hotel services and load management must be verified together. The yard declares a total volume of more than 20% and almost 30% of the deck surface in addition to a comparable yacht: they are percentages that explain the setting of the model, but that in delivery they must be translated into concrete controls on accesses, plants and modes of use.
Main data to be fixed in the specifications
| Voice | Given stated by the manufacturer | Operational verification |
|---|---|---|
| Length outside everything | 27,10 m | Compatible with boat seat, mooring and construction site services |
| Baglio | 7,16 m | Side encumbrance and sea access |
| Fishing | 1,94 m | Foundations, safety reserves and itineraries |
| Dislocation | 82,300 kg by load | Load Condition used for each comparison |
| Fuel | 13 000 tonnes | Levels, alarms, beams and accessibility |
| Fresh water / black water | 1.500 / 800 l | Hotel automation and exhaust procedures |
| Propulsion | 2 MAN V12 on axle lines, 1650/1900/2000 PS | Configuration actually installed |
| Generators | 2 × 29 kW, 50 or 60 Hz | Electric standard and load balance |
| Performance / autonomy | up to 27 knots; 1.100 nm to 12 knots | Declared values, not single unit test |
Propulsion: three power levels, one real configuration
The official card includes three two-shaft alternatives: two MAN V12 from 1.650 PS, 1,900 PS or 2,000 PS each. The first control is therefore to identify without ambiguity the installed version, bringing back fresheners, power and engine documentation in the delivery file. It is not correct to automatically transfer the maximum value of 27 knots to the single unit, because the manufacturer expresses it as a “up to” performance and the actual speed depends on the chosen configuration and the load condition.
The verification sequence must include cold start, alarm reading, synchronization of the indications between the stations, forward and backward grafting and command response. On the axis lines, the accessible transmission elements must be checked and the absence of obvious anomalies during the maneuvers. Each relief must be recorded with date, engine hours and test conditions, without turning a delivery control into a performance certification.

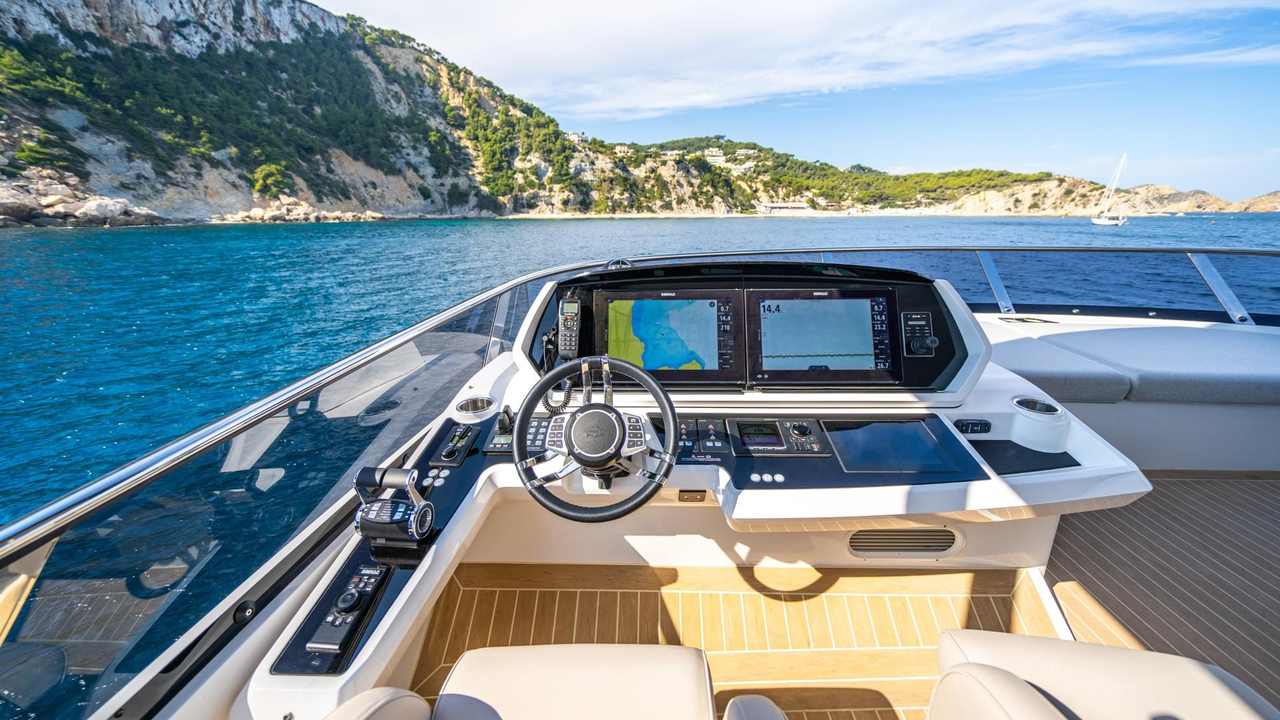

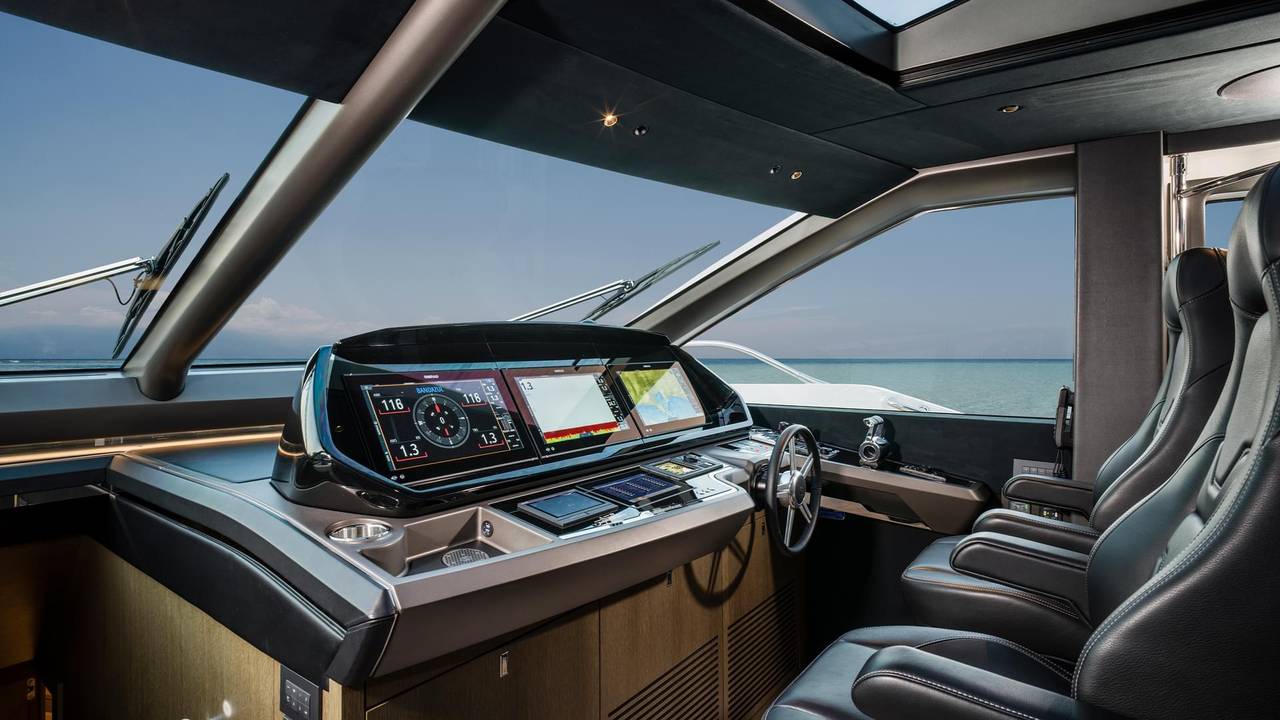

Main bridge and second command station
The 90 Ocean has flybridge and therefore requires consistency between at least two points of government. The owner should expect an orderly test of the screens, navigation data and commands available in each location. Compass, autopilot, sensors, engine alarms and indications of the tanks must be compared, also checking the procedure with which the command is transferred from one station to another.
The verification is not limited to the ignition of electronics. We need to control visibility, water protection, readability with intense light, night lighting and access to the panels. The really mounted devices can depend on the ordered set-up: for this reason the record must distinguish standard equipment, options and integrations performed on the specimen.
Generators and balance of electrical loads
The manufacturer indicates two 29 kW generators, in the 50 or 60 Hz version. The choice of the standard is not a detail: it must match with utilities, chargers, appliances and sockets installed. In delivery, both groups must be tested separately, checking start-up, load passage, alarms and behaviour with multiple contemporary utilities.
A credible budget considers air conditioning, kitchen, refrigeration, lighting, pumps, entertainment systems and beach club services. The presence of two generators does not allow to assume any parallel or automatic operating scheme: the actual logic is read in the manuals of the unit and demonstrated by the technical crew. It is useful to note which services remain available with one generator and which require priority management.
Fuel and autonomy: how to read the numbers
The declared fuel capacity is 13,000 litres. The communicated autonomy is 1,100 nautical miles to 12 knots, but remains a value of the manufacturer and not a valid guarantee in every situation. To plan a crossing, the observed consumption of the specimen, the real load, the weather-marine conditions and a reserve defined by the commander are required.
During delivery, level indicators, alarms, closures, vents and access to inspectable parts are checked. Even the eventual travase procedure must be demonstrated, if required on the specific unit. The initial register should associate engine hours, liters boarded and detected levels, so as to build a useful database without presenting theoretical estimates as test results.
Fresh water and black water
The declared tanks are 1,500 liters for fresh water and 800 liters for black water. The relationship between the two capacities must be read together with the number of guests, the frequency of the showers and the use of the kitchen. Four cabins and four between private baths and day baths make a complete verification of pumps, autoclaves, indicators, discharges and interception points important.
The test must proceed to the user, controlling flow, temperature and drainage. For black waters, we need a demonstration of level alarms and an unequivocal explanation of the permitted procedures. The capacity data does not replace management: hotel autonomy and environmental compliance depend mainly on monitoring and usage discipline.

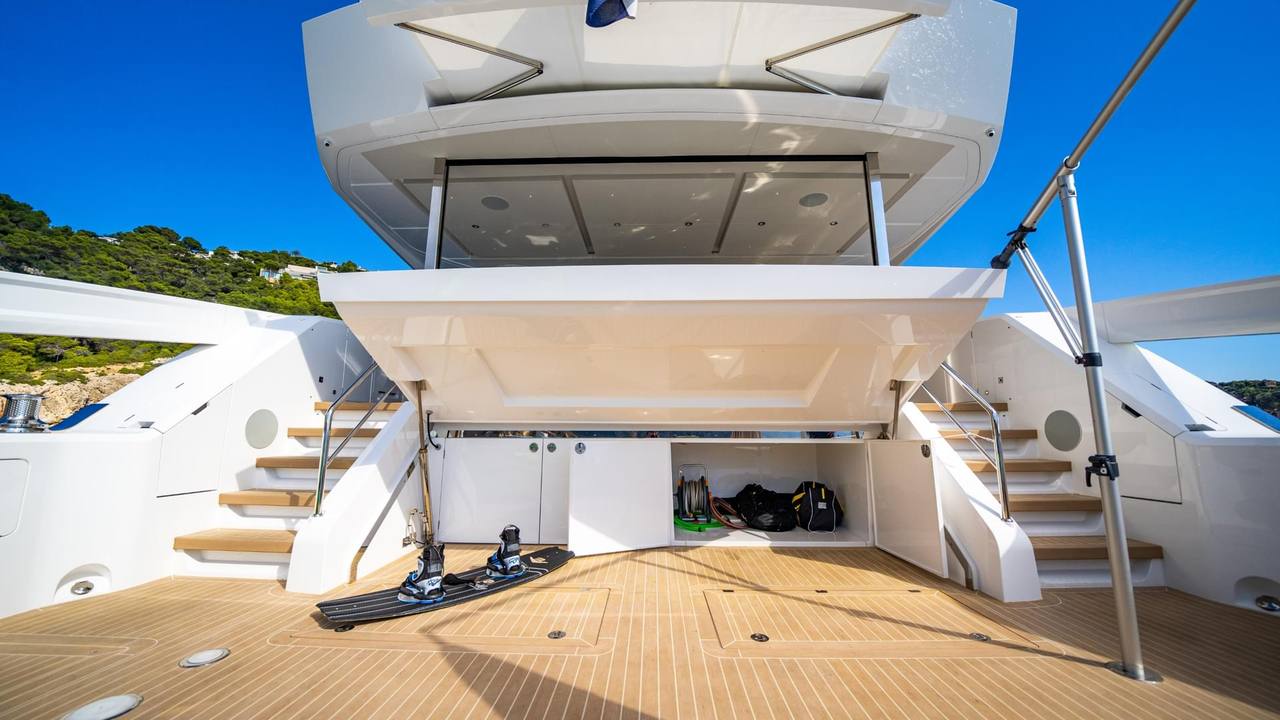

Beach club: accesses, shower and configuration X-TEND
The beach club measures over six for four meters according to Sunseeker. In this area there is access to the sea, oversized rain shower, X-TEND convertible seats and, in the configuration described by the manufacturer, integrated barbecue. The verification must follow every complete transformation, observing end of the race, blocking, free spaces and interference with people or equipment.
The Besenzoni-scale walkway declared by the yard has a function connected to the access to the water. It should be tested in manual modes, controlling commands, stability and recovery procedures. You should not deduct unpublished flow rates or conditions of use: limits must come from the specific documentation installed on board.
Hydraulic platform and dinghy handling
The adjacent hydraulic platform is presented as a space for hosting and launching a Williams 460 SportJet, a water bike and two SeaBobs placed in self-dreaming gavones. This is the design capacity described by the manufacturer, not the obligation to board each vehicle at the same time. The final configuration must comply with weights, dimensions and fixing points indicated for the specimen.
The test must show the entire platform cycle, the accessibility of controls, stop devices and the behaviour of the gavones. Before accepting a provision of tenders and water games, they control deemed, passes, drains and possibility to operate without obstructing transit routes. The weight of the vehicles must be inserted in the loading plan.

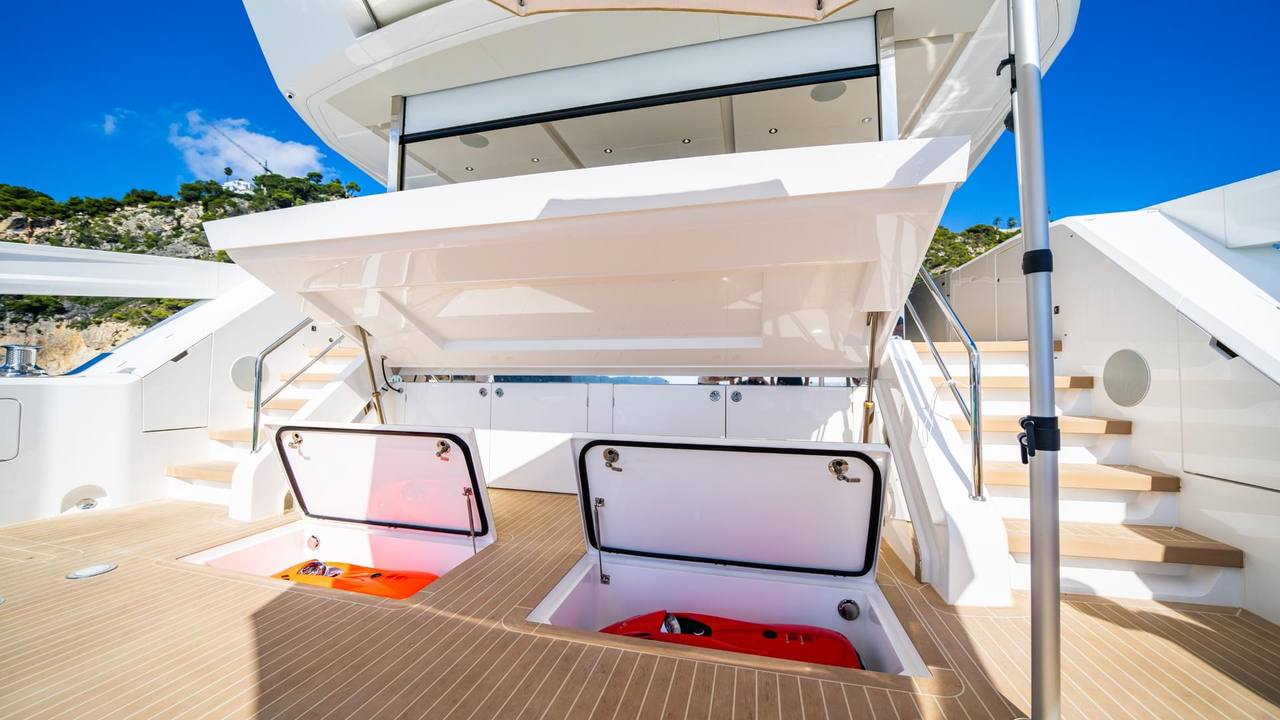

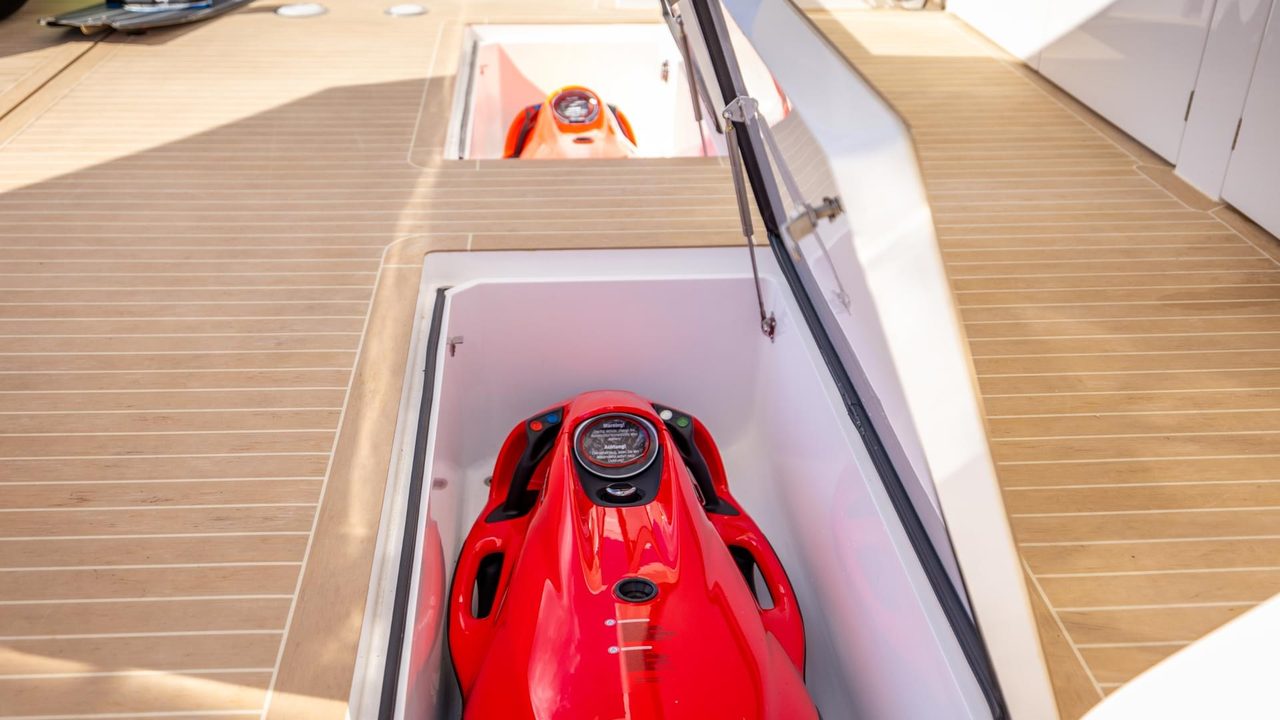

Self-draining Gavones and Operating Order
SeaBob gavones are defined as self-dreaming. This requires practical control: opening, door support, drainage, equipment deemed and no stagnation after washing. Each object must have a fixing compatible with the movement of the yacht; the simple presence of a compartment does not guarantee that the content remains firm.
You should draw up a map of the stern boots with allowed loads, expected content and responsible for checking before departure. In this way beach club and platform remain accessible without turning into a disordered deposit, and the crew can quickly identify safety materials and nautical equipment.
Flybridge: standard, hotel options and loads
Sunseeker declares the flybridge greater than 25% than that of a comparable luxury yacht. In the proposed configuration can be chosen infinity pool, side furniture with second barbecue and wet bar with stainless steel sink, drawer refrigerators, ice maker and glass bar top. These elements are described as selectable or available: they must therefore be verified against the order of the shipowner, without automatically attributing them to every 90 Ocean.
Every option changes consumption, maintenance and weight distribution. Wet bar test must include power supply, water, drainage and refrigeration. If the pool is installed, the specimen documentation must clarify filling, emptying and operating limits; it is not prudent to invent undeclared capacity or sequences.
Carbon fiber hardtop and retractable curtain
The yard describes a carbon fiber hardtop with retractable curtain with full width. The delivery control includes complete opening and closing, stop in position, uniformity of movement and verification of controls. There should also be access to seals, drains and accessible points, leaving structural evaluations to qualified technicians.
The shaded area serves flybridge seating and lunch, which can be configured or left more open according to the needs of the shipowner. It is therefore necessary to compare the layout really ordered with drawings and distinct: furniture, steps and outlet points must remain consistent with the intended use and not interfere with the control station.
Kitchen, refrigeration and hotel utilities
The kitchen and service areas must be tried as a set. Plans, sinks, refrigerators and appliances on the specimen must be lit according to a sequence that allows to observe the electrical load. The locks of the furniture deserve a dynamic verification, because drawers and doors must remain retained during navigation.
The control includes drains, ventilation and cleaning facilities. Undocumented equipment should not be listed: the definitive inventory must report the brand, model, voltage and manual of each installed user. This simplifies spare parts and maintenance and prevents a commercial description to replace the real distinction.

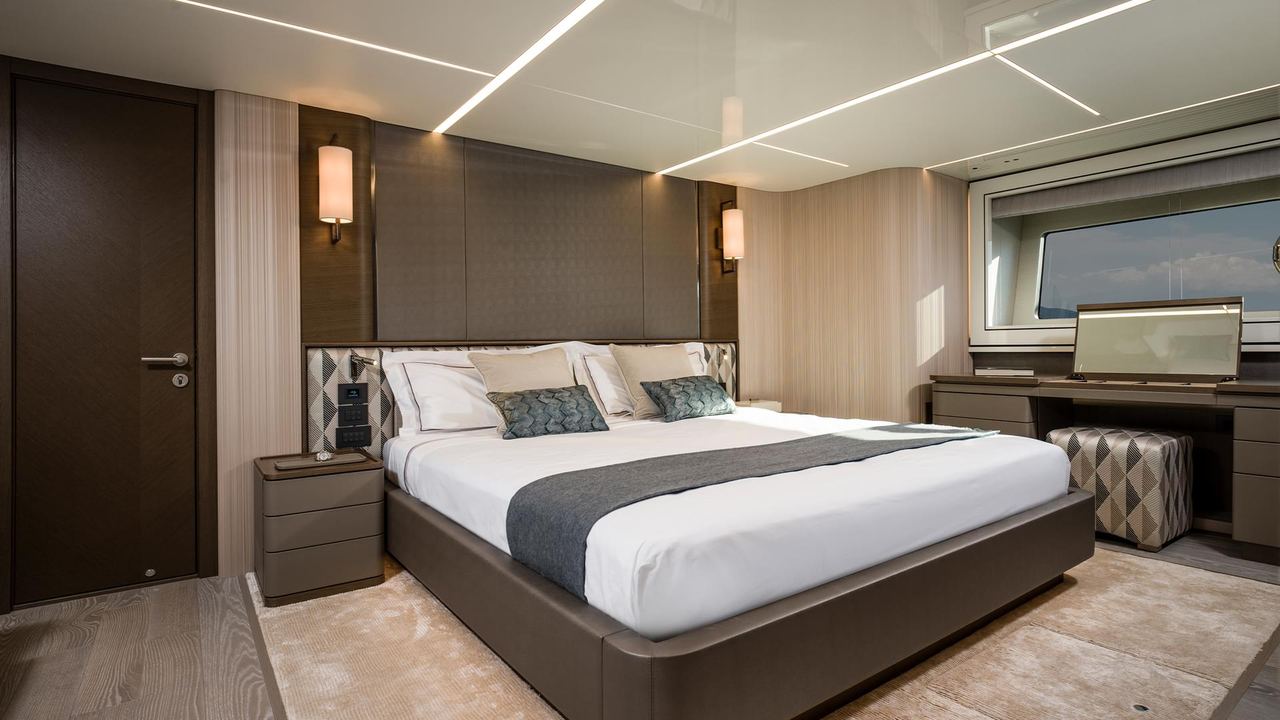

Cabins and four services
The official configuration indicates four cabins and four between private bathrooms and day bath. Night verification should cover lighting, sockets, air conditioning, obscuring, ventilation and closing systems. Each cabin should be examined separately, announcing differences from the approved drawings.
Water supply, mixing, drainage, ventilation and connection to the black water system are controlled for the toilets. The furniture must also be inspected in less visible areas, where maintenance access can be more important than finishing. The delivery is complete only when the crew can reach valves and components requiring ordinary interventions.

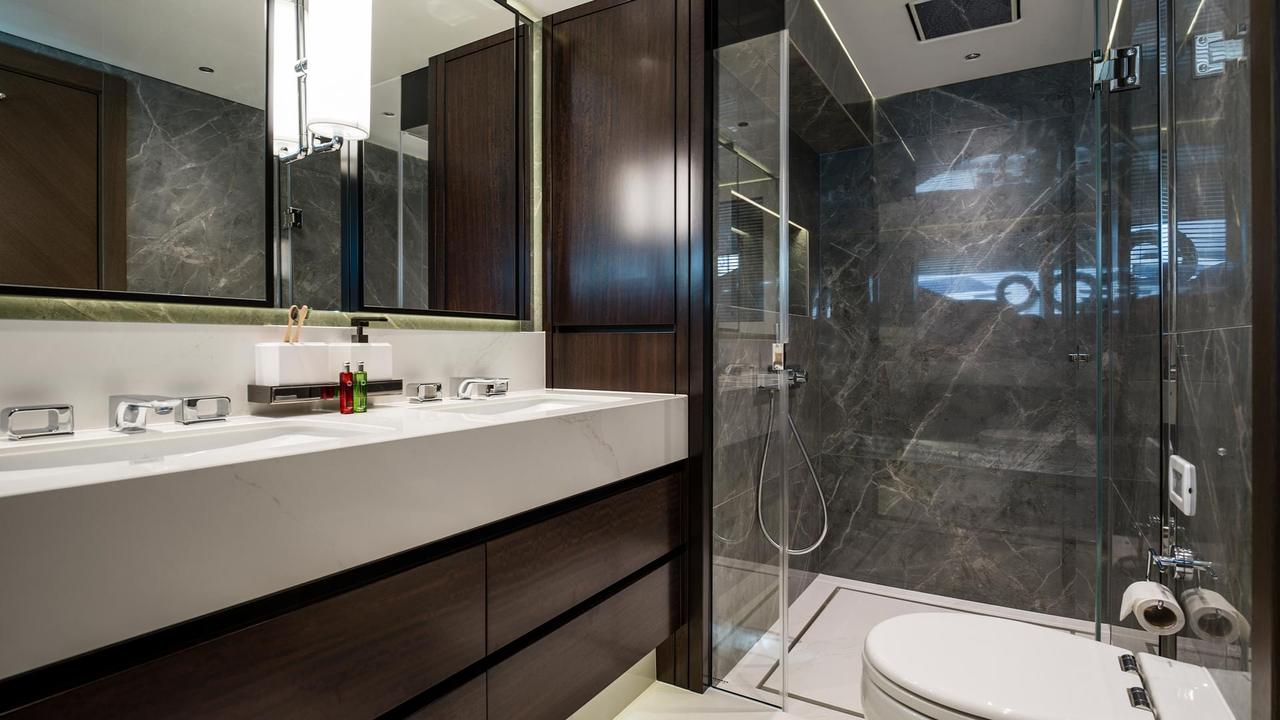

Bathrooms: user proof
A well finished bathroom is not necessarily a system already tested. It tests every tap, shower, drain and pump, simultaneously checking any pressure changes. Doors, drawers and mirrors must remain safe, while sealing and draining should be observed without formulating hidden judgments behind rapid visual inspection.
The minutes should report for each local outcome and eventual defect, with photography and responsibility for correction. It is a more effective method of a generic note on “internals”, because it allows you to close each reserve punctually before the final acceptance.
Recommended sequence for technical delivery
Delivery can be divided into five stages. First you control documents, freshmen, motor configuration and electrical standards. Then there are fixed yachts: generators, pumps, water, drains, refrigeration and air conditioning. The third phase covers platform, catwalk-scalator, X-TEND, gavones and hardtop. The fourth is dedicated to the two command stations and navigation. Finally, the essential controls are repeated after the test, looking for alarms, drawings or anomalies that emerged under load.
Each stage must produce a signed list of compliance, reserves and deadlines. The values of 27 knots and 1,100 miles to 12 knots remain manufacturer statements until they are compared with a documented test of the unit under the specified conditions. This distinction protects both the shipowner and the yard.
sequence of final verification of the shipowner
- Confirm version of the MAN V12, freshmen and documents of the axis lines.
- Try the two 29 kW generators separately and record the loads.
- Compare data and alarms between main bridge and flybridge.
- Check tank levels and alarms from 13,000, 1,500 and 800 liters.
- Execute the full cycle of platform, catwalk, X-TEND and hardtop.
- Check drainage and hold in the cranes dedicated to the equipment.
- Invent actual flybridge options and related utilities.
- Try kitchen, four cabins and four user services.
- Record load and weather conditions for each navigation relief.
- Close all reservations with evidence before final acceptance.
The Sunseeker 90 Ocean offers very large spaces and configuration possibilities. Precisely for this reason the quality of delivery depends on the accuracy with which official data are separated, ordered options and results observed on the individual unit. A traceable verification sequence makes the available volume truly manageable and transforms complex equipment into comprehensible procedures for shipowner and crew.
